Home » Products » Dredging Equipment » Simple Jet Suction Sand Dredger
Simple Jet Suction Sand Dredger

Simple Jet Suction Sand Dredger

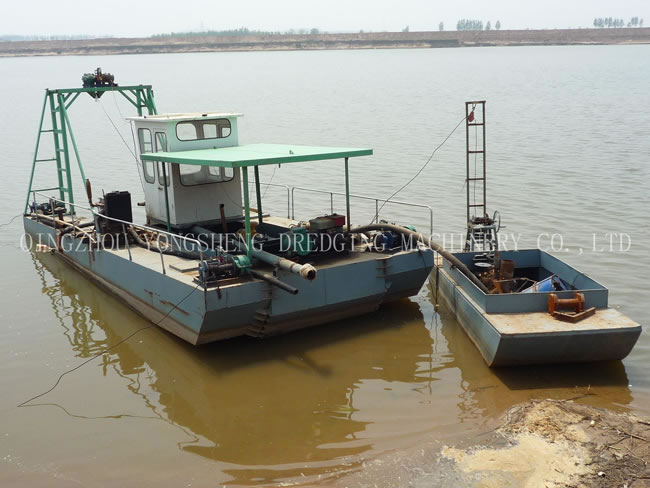

6-inch Simple Jet Suction Sand Dredger (Model 1)
Item Parameter Remark
Dredger Structure 9m*2.2m* 1.1m Hull main steel plate
Main Power Engine 175KW Made in Weichai, First-Class quality in China
Main Sand Pump 6 inch Pump Water flow 600m3/h
Dredging Depth 10m
Dry sand capacity 100m3/h-120m3/h
Discharge Distance 200m-500m
Steel Plate grade CCSB certification marine plate
Stell Plate paint Three layers
Use the Diesel 27L/H
Package Nude Packing in container
Lead Time 12-15 working days
Simple Jet Suction Sand Dredger

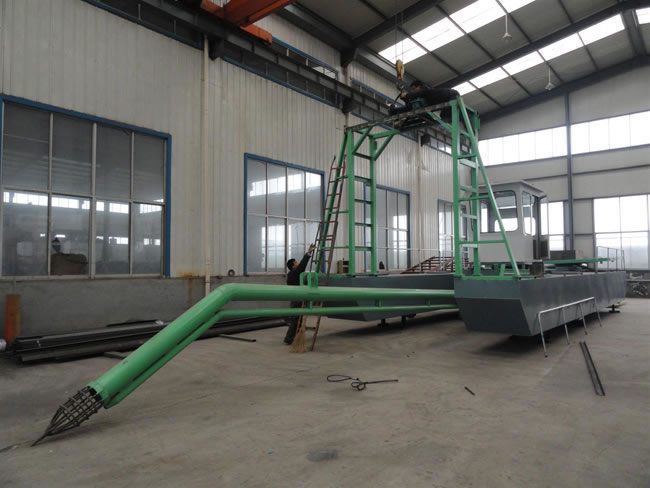

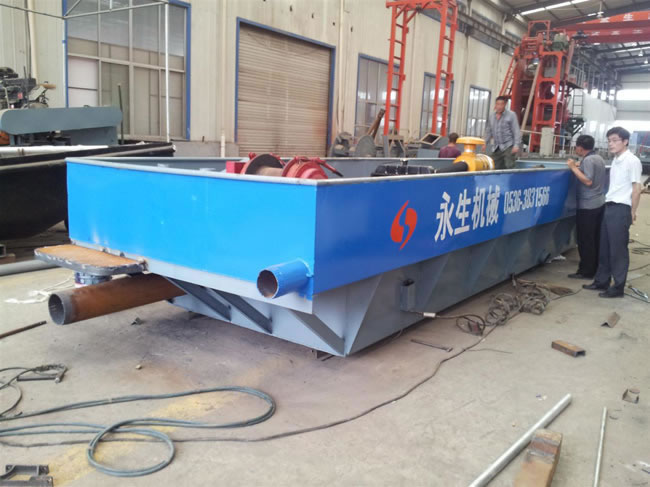

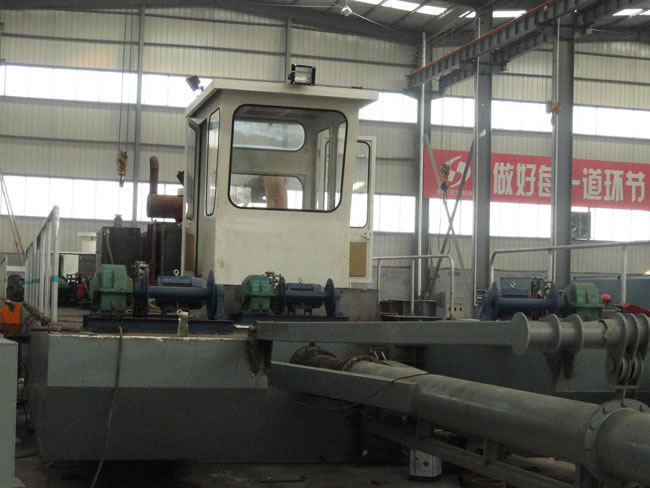

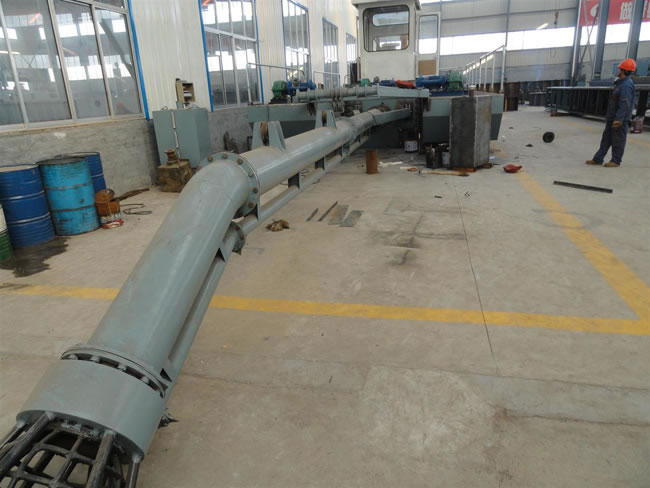

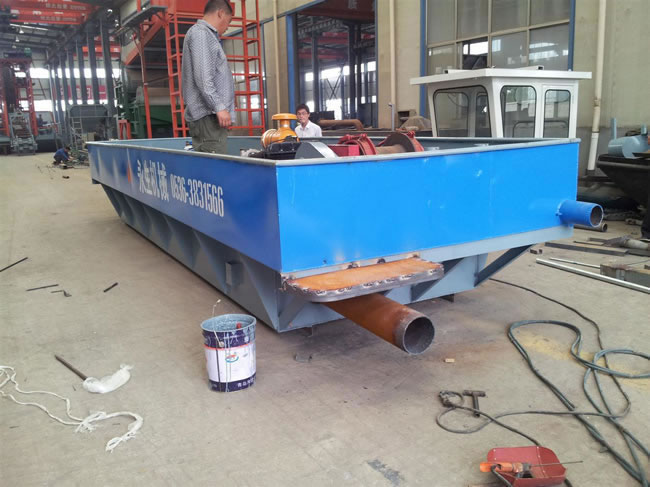

6-inch Simple Jet Suction Sand Dredger (Model 2)
Item Parameter Remark
Main Dredger Pontoon Structure 7m×2.1m×1.3m×1 PC
Side Dredger Pontoon Structure 11m×1.5m×90cm×2 PC
Main Power Diesel Engine 225 KW Made in Weichai, First-Class quality in China
Main Sand Pump 8/6 Pump Made in ShiJiaZhuang (Australia technology), Water flow 570m3/h
Dredging Depth 10m
Dry Sand Capacity 90-100m3/h
Discharge Distance 500m
Jet Pump 6/4 inch high pressure water pump Water flow 250m3/h
Jet Winch manual operation Winch ×2 Set
Operation System Electrical Operation System Made in Yongsheng Shipyard
Navigability No/Yes If you need, we can install Propeller on dredger.
Lead time 30 working days
Warranty One year

Note: Nude packing and transport by container
