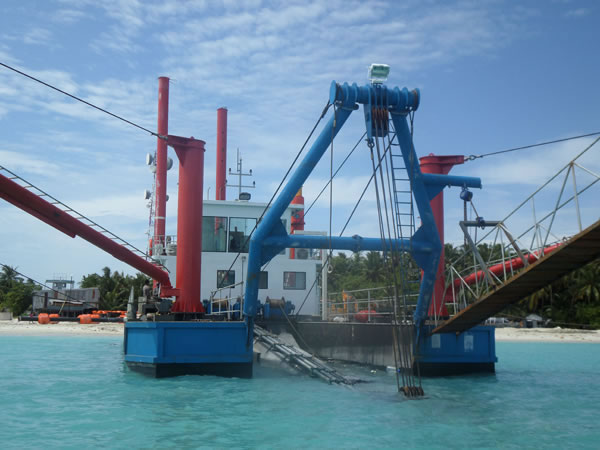

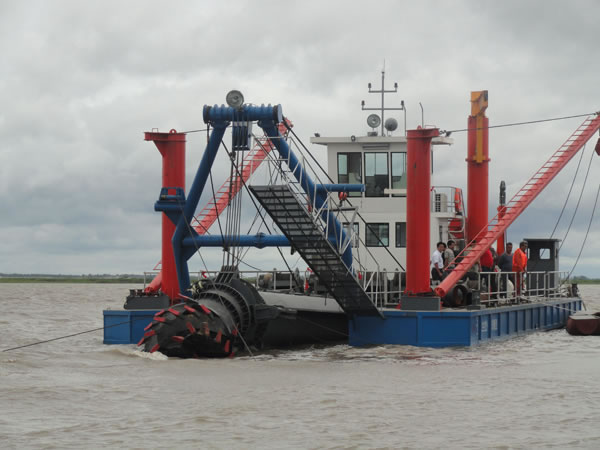

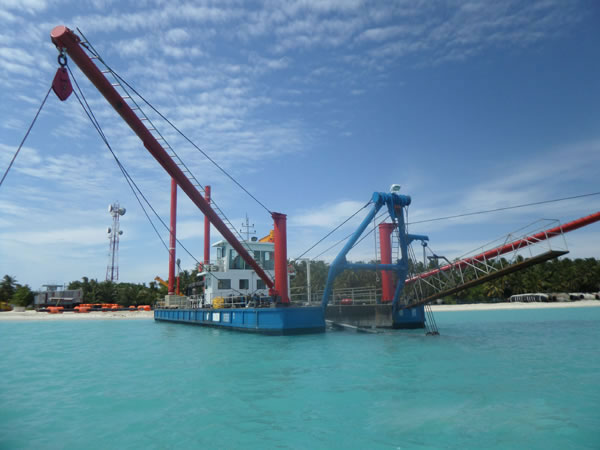

Cutter Suction Dredger

Cutter Suction Dredger

Features of Cutter Suction Dredger
1. Highly efficient fuel consumption helps save on operating cost.
2. The cutter suction dredger is equipped with highly efficient cutter and wheel drive system.
3. Fresh water cooling system.
4. The hull is composed of two side pontoons connected by small coupling pontoons.
5. The dredging equipment is completely assembled and fully tested before delivery.
6. Simple structure makes equipment assembly fast, and the cutter suction dredger can be used afloat or onshore.
7. Ready for operation as soon as it arrives the work site.
8. Standard design allows short delivery time.
9. Standard dredger spare parts are available from stock.
10. The cutter suction dredger is ideal for use in coastal water area.
11. We can design cutter suction dredging equipment according to customers' need.

Applications of Cutter Suction Dredger
The cutter suction dredger is mainly used to fulfill digging, dredging and filling operations at water areas such as coastal, potamic, reservoir, canal, etc.

Specifications of Cutter Suction Dredger

Cutter suction dredger, 10 inches

Items Specs Remarks
Total Length 25.0m
Hull Length 18.0m
Hull Depth 1.6m
Hull Width 5.2m
Main Engine 450KW JICHAI or WEICHAI
Auxiliary Engine 24KW
Pump Model WN-250
Pump Suction Dia. 250mm
Pump Discharge Dia. 300mm
Cutter Dia. 1.3m 30rpm
Dredging Depth 10m
Water Flow 1200m3/h
Discharge Distance 1000m
Working Weight 100T
Spud Pile ∮377mm 13.0m/piece
Winch 3 sets
Operation System PLC control system and Hydraulic system
Delivery Time 100 working days.

Cutter suction dredger, 12 inches

300 Pump Cutter Suction Dredger
Items Specs Remarks
Total Length 29.0m
Body Length 24.0m
Hull Depth 1.8m
Hull Width 6.0m
Dredging Depth 13m
Main Power 540KW Jichai Diesel Model,6190 Pump Power
Pump Model WN300 Suction12" Discharge14" Shijiazhuang
Pump Suction Dia. 350mm
Discharge Dia. 300mm
Water Flow 2000m³/h(Capacity up to 300m3/h)
Discharge Distance 1000 m .
Working Weight 120T
Spuds ∮450mm Two sets 17 m
Winches 3Sets
Auto-navigation No
Operation System Hydraulic
Accessories Tools for diesel, oil seal, welders, etc.
Lead Time 90days
Shipment Loading in bulk
Payment Terms T/T

Cutter suction dredger, 14 inches

Items Specs Remarks
Total Length 36.6m
Hull Length 26.0m
Hull Depth 1.8m
Hull Width 6.0m
Main Engine 1000KW JICHAI Power
Auxiliary Engine 30KW Generator WEICHAI Power
Pump Model WN-350
Pump Suction Dia. 350mm SHIJIAZHUANG
Pump Discharge Dia. 450mm
Dredging Depth 14m
Water Flow 2800m3/h
Discharge Distance 1000m
Working Weight 150Ton
Spud Pile ∮450mm 18m/piece
Winch 3pieces
Operation System PLC control system and Hydraulic system
Delivery Time 90 working days

Cutter suction dredger, 18 inches

Items Specs Remarks
Total Length 44.0m
Hull Length 35.0m
Hull Depth 2.2m
Hull Width 8.0m
Main Engine 1200KW JICHAI 1000rpm
Auxiliary Engine 380KW WEICHAI
Pump Model WN-450 SHIJIAZHUANG
Pump Suction Dia. 450mm
Pump Discharge Dia. 350mm
Dredging Depth 14m
Water Flow 3500-4000m3/h
Discharge Distance 1500m
Working Weight 300T
Spud Pile ∮630mm 18m
Winch 3 sets
Operation System PLC control system and Hydraulic system
Delivery Time 150 working days

Details

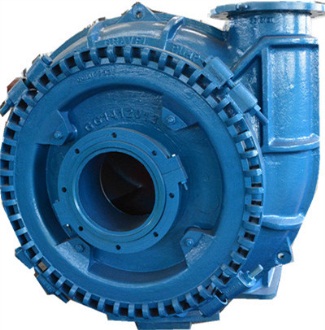

Dredge Pump
We choose WARMAN PUMP for the pump of our dredge. Because it is casted from 2G35CrMn thus make it features high wear resistance as well as low rotational speed and high efficiency.

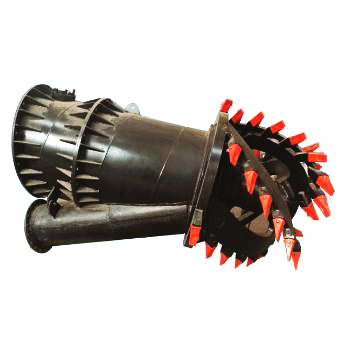

Cutterhead
To ensure a good cutting operation when dredging hard mud layer and hard sand layer, we develop the cutterhead by ourselves. Our cutterhead is casted of high wear-resistant alloy with a reasonable structure. Its lifespan can reach as long as 10 years.
It has five main types each suitable for mud layer, sand layer, hard sand layer, coral reef layer, etc.
The core parts are guaranteed for five years including hydraulic motor and cutter head bearing.

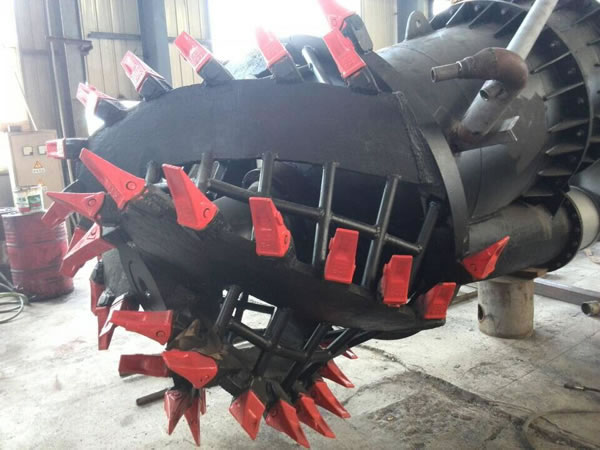

Cutter Teeth on Cutterhead
The cutter tooth is an important component on cutterhead that is easy to wear. It is similar to the human teeth and consists of cutter teeth base and cutter teeth, which are connected by pin rolls. Since the worn part is cutter teeth, you only have to replace the teeth for good operation performance.
The cutter teeth we used are suitable for rock and gravel excavation on excavators.
The cutter teeth we used are suitable for rock and gravel excavation on excavators. In addition, according to the types of excavated soil, the cutter teeth have three types: for mud dredging, for sand dredging and for hard soil dredging (with high wear resistance).

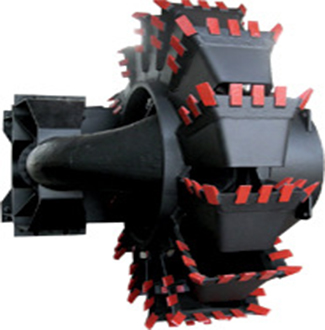

Bucket Wheel Sand Dredger
The bucket wheel sand dredger is mainly used for dredging hard mud layer and hard sand layer.

Material
The dredger is made of steel plate.

Dredger Maintenance
1. Check the cutter head and hydraulic system frequently.
2. Check the main engine before startup to make sure every component is in good condition.
3. For more detailed dredging equipment maintenance information, please contact us directly.

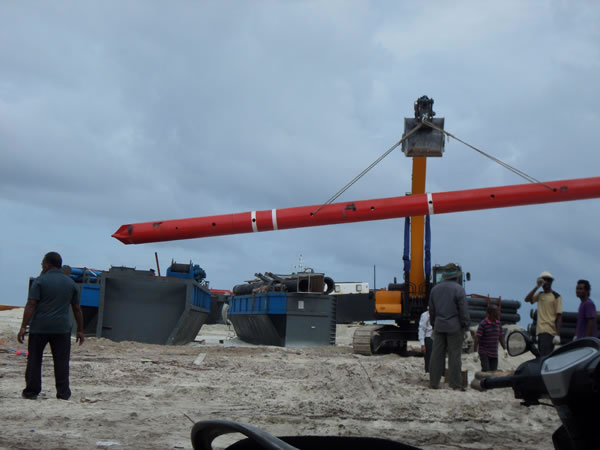

Packaging
Dredger bigger than 12 inches will be delivered in bulk.
Dredger smaller than 12 inches will be delivered in container.

We are an experienced Chinese manufacturer and supplier of cutter suction dredger. Our products also include dredging machinery, sand dredger, dry ore magnetic separator, gold panning ship, packing machinery, filling machinery, concrete mixing plant, etc. Our company is located in Qingzhou, which has convenient transport and picturesque scenery. Our products are exported to Russia, Iran, Iraq, North Korea, Vietnam, Malaysia, Singapore, the Philippines, Thailand, India, Namibia, Nigeria, Bangladesh, Libya etc.
If you have any cutter suction dredger needs, please don't hesitate to contact us. We can provide you dredging equipment with high quality and competitive prices.
