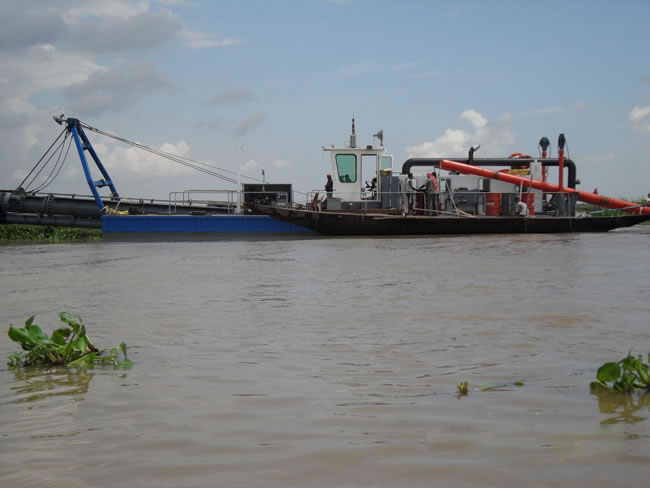

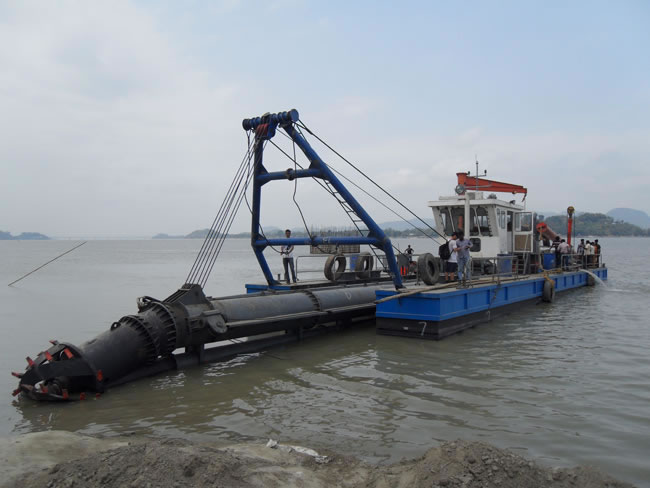

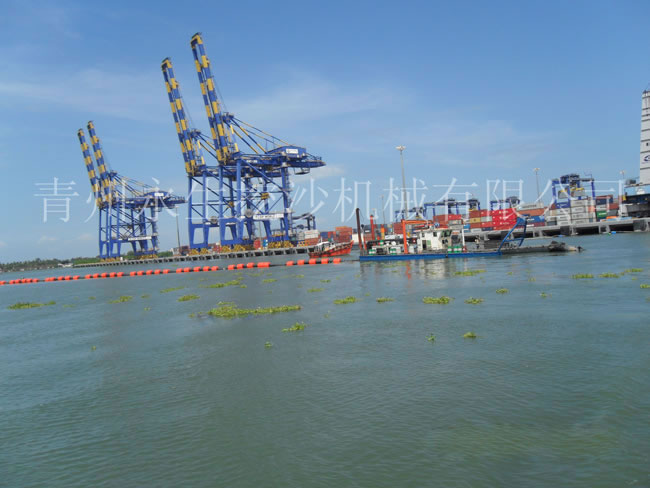

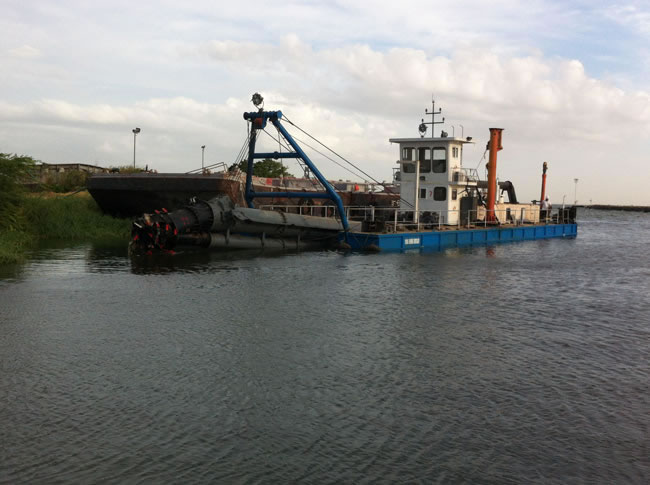

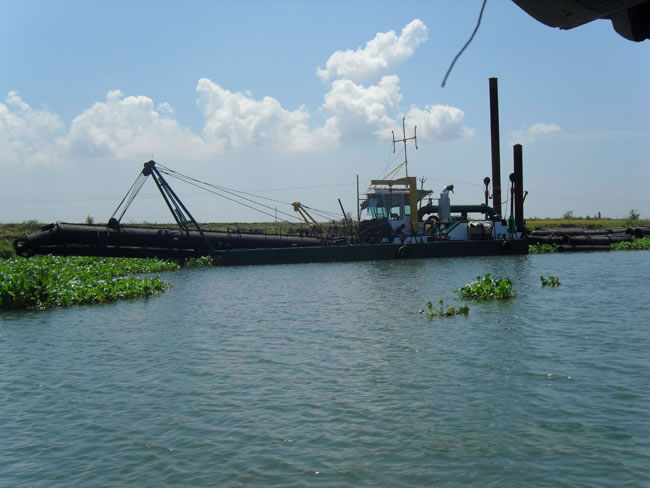

This hydraulic-driven desilting boat is suitable for desilting the seaport and river way. Its desilting capacity is between 100m3/h and 800m3/h while the dredging depth ranges from 5m to 23m. Its discharge distance covers from 300m to 3,000m.
It is composed of three parts, which can be disassembled and installed. The desilting dredger is equipped with an anchoring pole, anchor boat and self-propulsion devices. Since the desilting ship is centralized controlled and dismountable, it is easy to operate, install and convenient to transport by trucks and trains in bulk.
| Item | Parameter | Remark |
| Total Length | 21m | |
| Hull Length | 14.0m | |
| Hull depth | 1.6m | |
| Hull width | 4.6m | |
| Main Power | 300KW | |
| Auxiliary Engine | 24KW HYDRAULIC SYSTEM | WEICHAI POEER |
| Pump model | WN-200 | SHIJIZHUANG |
| Pump Suction Dia | 250mm | |
| Pump Discharge Dia | 200mm | |
| Dredging Depth | 9m | |
| Water flow | 900m^3/h | |
| Discharge Distance | 1000m | |
| Working weight | 60T | |
| Spuds | 325mm Two sets | 18m |
| Winches | 3 Sets | |
| Operation System | The most advanced Hydraulic and PLC control system | |
| Delivery Time | 60days |
| Item | Parameter | Remark |
| Total Length | 44m | |
| Hull Length | 35.0m | |
| Hull depth | 2.2m | |
| Hull width | 8.0m | |
| Main Power | 1200KW | |
| Auxiliary Engine | 380KW HYDRAULIC SYSTEM | WEICHAI POEER |
| Pump model | WN-450 | SHIJIZHUANG |
| Pump Suction Dia | 550mm | |
| Pump Discharge Dia | 450mm | |
| Dredging Depth | 16m-22m | |
| Water flow | 1500m^3/h | |
| Discharge Distance | 1500m-3000m | |
| Working weight | 300T | |
| Spuds | 630mm Two sets | 18m |
| Winches | 3 Sets | |
| Operation System | The most advanced Hydraulic and PLC control system | |
| Spare parts | 70 items of tools for disel, oil seal, welders etc | |
| Lead Time | 150 days |
Details
Oil Pump
The oil pump we used is from the brand of REXROTH or VICKERS to ensure the high performance.
The oil pump has two types for you to choose from: rotary vane pump and plunger pump. The rotary vane pump features compact structure, smooth operation, proportioned flow, and makes little noise. The plunger pump features high precision, good sealing performance, high work stress. In addition, according to the working condition, Yong Sheng can also provides suitable double pump.
Lubrication Oil Tank
The lubrication oil tank is designed for lubrication the cutterhead automatically, due to its simple structure the maintenance is very easy.
Daily-use Oil Tank
Audible and Visual Alarm
The audible and visual alarm can protect the safety of operators and ensure the smooth operation of equipment. It is connected with sensors arranged in certain part of the dredger to receive operation signals in time.
Once the equipment failure is detected, the alarm will automatically raise an alarm to let operators deal with the problem immediately, so as to meet the requirements of protecting both personnel and equipment.
