Rubber Hose

Sand discharging rubber hose Introduction

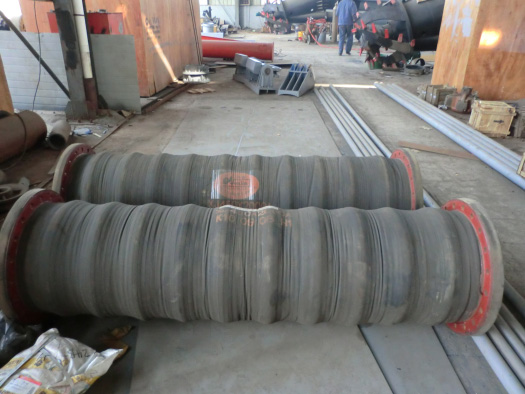

Dredge rubber hoses are designed specifically for discharge service as a flexible connector between lengths of pipe to handle the shifting and twisting of pontoons caused by water movement. Flange type dredging rubber hose is used for connecting pipelines, reducing the swaying which is caused by waves, so that medium can flow smoothly in the pipeline.

1. Rubber Hose Pipe Materials:
Tube: Smooth NR/ synthetic rubber, generally color is black
Reinforcement: one or multilayer spiral fabric reinforcements, steel wire spiral layer,
Cover: Oil, abrasion and weather-resistant wrapped synthetic rubber.

2. Rubber Hose Pipe Structure:
1) The inner rubber liner is composed of wear-proof natural rubber and synthetic rubber.
2) The reinforcement layer is composed of high strength rubber dipped chemical fiber and reinforced by spiral metal wire.
3) The rubber cover is composed of natural rubber and synthetic rubber.
4) The surface of the hose takes the shape of corrugated

3. Rubber Hose Pipe Performance:
1) Rubber hose pipes are used with dredgers for silt/gravels conveyance.
2) Pipe wall thickness range: from 20mm up to 50mm.
3) The suitable working temperature: from -20°C to +50°C.
4) Abrasion-resistant and bending –resistant.
5) It is convenient to install, flexible to use and safe.

4. Rubber Hose Pipe Applications:
1) Used for mud piping of dredge.
2) Widely used for sucking or discharging of mud, water, oil, air, and powered in Industry, agriculture, factory, mining and building, etc.

5. Sand discharging rubber hose rubber specification
1) D.: 150-1300mm
2) Working Pressure: 0.5-2.0MPa
3) Temperature: - 20 to 40C
4) Length: 1-12m
5) Any small quantity together with dredging pipes and floats are available.
6) The rubber hose as flexible suction tube for dredger, and also as discharge pipe for dredgers.
