Weed Cutting Suction Dredger

Weed Cutting Suction Dredger

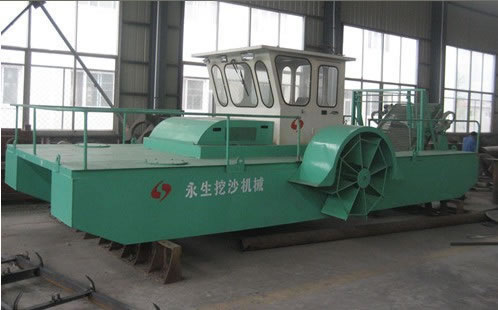

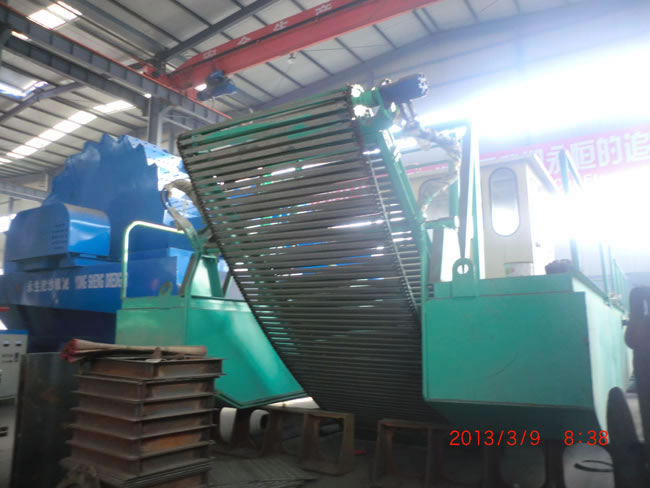

Our weed cutting suction dredger is a modern cleaning machine which integrates a series of functions into one device such as mowing, gathering, draining, transporting, unloading, dredging, etc. It adopts full hydraulic system, offering a smooth user experience. This equipment mainly composed of header, cutting knife, conveyor chain, paddle wheel can work continuously with high cleaning efficiency. Equipped with night lighting system, it is ideally suitable for accomplishing the urgent night tasks. This dredger can be operated by only one person. In addition, our quality product can find its applications in lake, artificial lake, and river way, etc. for collecting aquatic weeds or surface floaters.

Dimension

Length 15 m
Width 3.4 m
Height 2.7 m
Weight 14,000 kg

Working Capacity

Cut 2,743 mm Width x 559 mm Depth
Working Depth 1.5m Extensions available to 10 m

Engine

Type JICHAI 4190 270KW@ 1,200 rpm
Fuel Capacity 1,200 liters
Fuel Consumption 60.5 lit./hr

Cutter head

Type Horizontal Cutter head
Speed 0 to 80 rpm
Size 3.02m Width ×53.34cm Diameter

Hydraulic System

Drive Direct from Engine
Motors Fixed Displacement

Electrical System

Alternator Output-100amp
Battery Heavy Duty-12 volt

Dredge Pump

Type Shijiazhuang
Discharge Diameter 250 mm
Suction Diameter 200 mm
