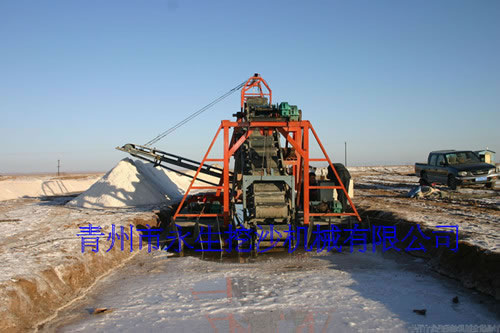

Cutter salt mining dredger / Chain bucket salt dredging ship
This kind of machine, especially designed for the saltern, is used to dredge, crush and transport salt. We have manufactured 20 units of dredging salt machines for Shou Guang Salt field, Mongolia saltern, Qinghai Salt Lake etc.
It could crush the salt bed and discharge salt with 200-1500m. It features easy operation, antiseptic treatment and 20 years' durability.
If you have the interest, you are welcome to visit our company. We shall give you a spot show about this salt dredging machine.

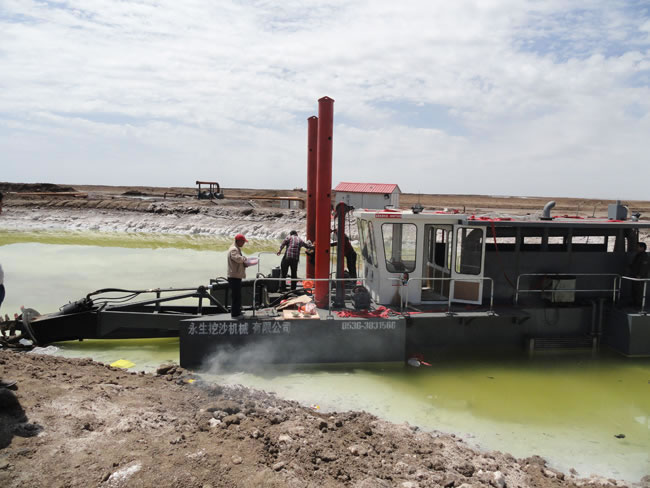

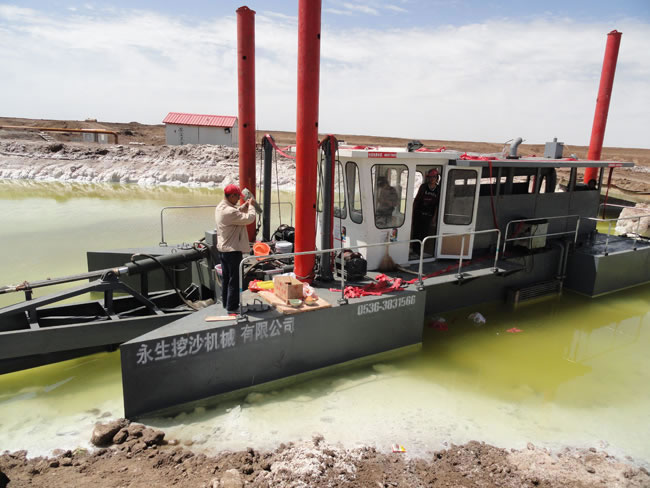

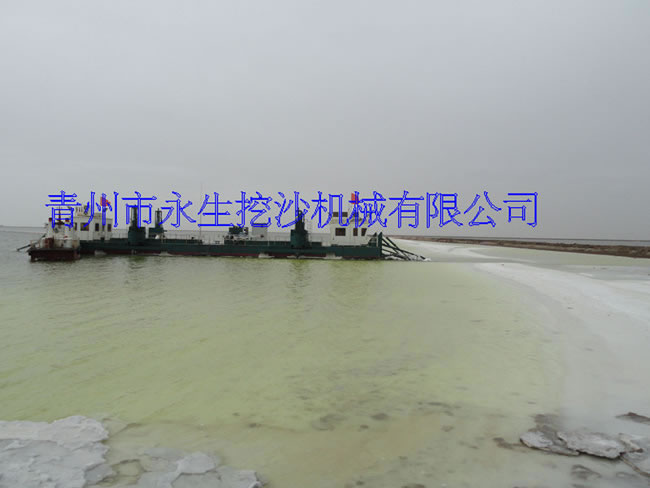

Cutter suction salt dredging ship
Its salt dredging capacity ranges from 50m3/h to 4000m3/h. The dredging depth changes between 4m and 23m.
Cutter suction salt dredging ship YS-WYC80 small chain bucket salt dredging ship
Specification of 8-inch cutter suction salt dredging ship| Items | Parameter | Remark |
| Total Length | 21m | |
| Hull Length | 14.0m | |
| Hull depth | 1.6m | |
| Hull width | 4.6m | |
| Main Power | 300KW | |
| Auxiliary Engine Power | 24KW | WEICHAI POEER |
| Pump Model | WN-200 | SHIJIZHUANG |
| Pump Suction Dia | 250mm | |
| Pump Discharge Dia | 200mm | |
| Dredging Depth | 9m | |
| Water Flow | 900m^3/h | |
| Discharge Distance | 1000m | |
| Working weight | 60T | |
| Spuds | 325mm Two sets | 18m |
| Winches | 3 Sets | |
| Operation System | The most advanced Hydraulic and PLC control system | |
| Lead Time | 60days |
| Items | Parameter | Remark |
| Total Length | 25m | |
| Hull Length | 18.0m | |
| Hull depth | 1.6m | |
| Hull width | 5.2m | |
| Main Power | 450KW | |
| Auxiliary Engine Power | 24KW | WEICHAI POWER |
| Pump Model | WN-250 | SHIJIZHUANG |
| Pump Suction Dia | 300mm | |
| Pump Discharge Dia | 250mm | |
| Dredging Depth | 10m | |
| Water flow | 1200m^3/h | |
| Discharge Distance | 1500m | |
| Working weight | 100T | |
| Spuds | 377mm Two sets | 18m |
| Winches | 3 Sets | |
| Operation System | The most advanced Hydraulic and PLC control system/Electrical System | |
| Lead Time | 90days |
| Item | Parameter | Remark |
| Quantity of Buckets | 50 units | |
| Hull（L×W×H） | 1800cm×150cm×90cm | |
| Main Frame | 2.8cm×1.1mX1.1m | |
| Ladder | 1250cm×0cm×45cm | |
| Four-corner wheel | Dia-90cm, Width-75cm | |
| Salt dredging capacity | 80m3/h | |
| Dredging Depth | 6m | |
| Chain | 67cm×90cm×20mm | |
| Bucket Capacity | 0.065m³ | |
| Bucket Weight | 35kg/piece | |
| Reducer | 650×1set,350×1set,250×2set | |
| Power | 46KW | |
| Warranty | 1 year | |
| Lead Time | 15 working days |
Details
DGPS (Differential Global Position System)
The DGPS provides improved accuracy of location and all-weather service. It has high reaction sensitivity, and is easy to operate and provide global geocentric coordinates.
Manipulator
The flexible manipulator can control the hydraulic system by handle and keyboard to do all kinds of construction projects, which is fast and efficient, greatly reducing labor intensity.
Shaft Generator
The shaft generator is connected to the auxiliary engine in a certain way. It can provide stable power supply to the electric equipment on the dredger during working condition.
Yong Sheng chooses shaft generators from Marathon motor, STAMFORD, and XingNuo, which has good quality and stability.
Pressure Gauge
Yong Sheng equips several pressure gauges in parts of the dredger, such as the inlet and outlet of the fluid end on mud pump, and other hydraulic working departments, all of which are used to measure the local pressure. So that inspectors can grasp the operation status of equipment instantly, find and troubleshoot problems, and ensure the safety of operators and smooth operation of equipment.
Our company owns three factories in Qingzhou city, Shandong province. As one of the biggest manufacturer, we could provide specialized OEM service for sand mining machinery, sand making machinery, dredging machinery and mineral processing machinery. Our senior engineers and professional R & D staffs could rapidly work out one reasonable and feasible scheme according to your working environment and specific needs.
