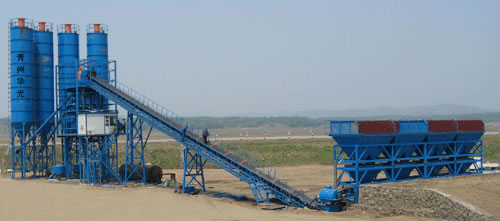

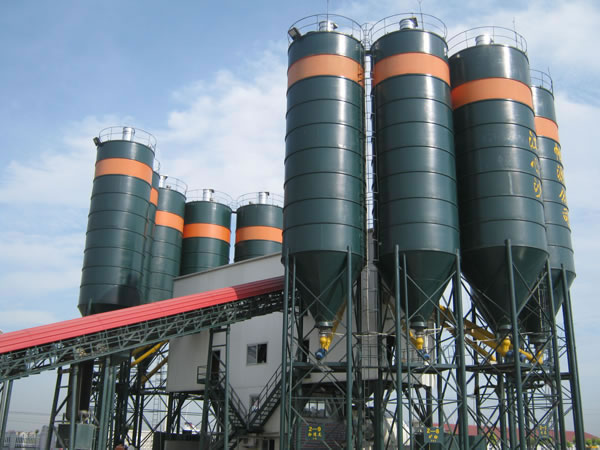

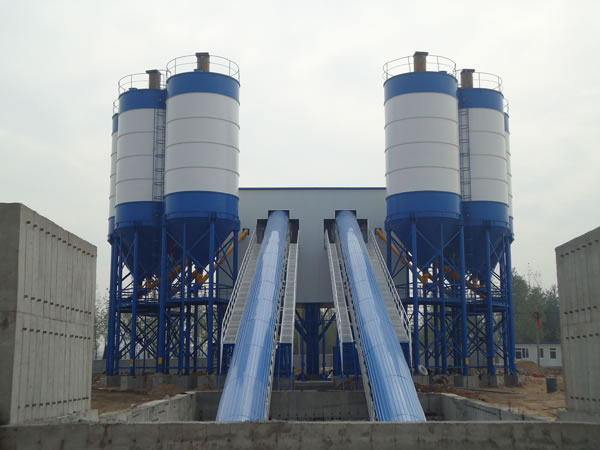

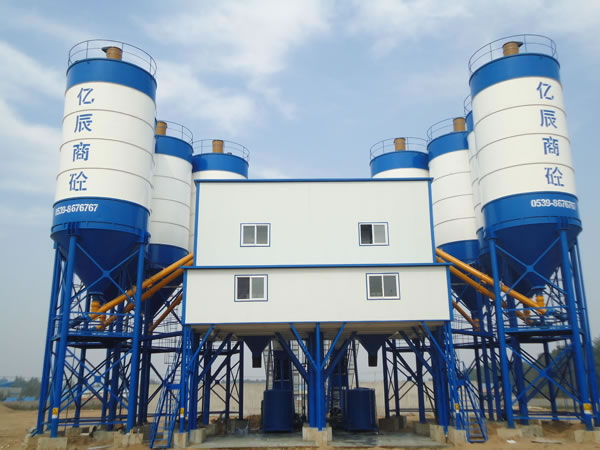

Concrete Mixing Plant

Concrete Mixing Plant

This product has been discontinued and removed from our shelves.
Features of Concrete Mixing Plant
1. The high quality concrete mixing plant at reasonable price is available for many kinds of aggregate, and the biggest diameter of the grain is180mm.
2. The mixing plant is equipped with a 20mm high anti-abrasion lining board and a high strength scraper, with the hardness of 60HB.
3. This energy-conserving and environment-friendly concrete mixing plant offers a particular mixing control system and technical oil pump.
4. The water spray system comes with multiple pipe installation and multiplexing, so that the water can spray evenly.
5. You can choose the weighing protection system and the microwave humidity measurement system for the concrete mixing plant.
6. There are four layers for the shaft seal and electric oil pump.
7. The special control system and the TE switch of the concrete mixing plant are imported original from France.

Application of Concrete Mixing Plant
Our concrete mixing plant is applied to large scale infrastructure construction and construction of roads, bridges, airports, ports, and other construction projects.

Technical parameters

Model Unit Parameter
Theoretical productivity m3/h 60
Type of mixer MA01500/1000
Power of agitator kw 2*22
Discharging capacity m3 1
Inner aggregate size mm 60
Capacity of per aggregate batch bin m3 13
Conveying capacity of belt t/h 300
Aggregate kg 1200±2%
Cement kg 600±1%
Fly ash kg 300±1%
Water kg 350±1%
Admixture kg 30±1%
Capacity kw 105
Discharge height m ≥3.8

Material
Concrete Mixing Plant is made of steel plate.

Package
Packed in bulk or in container.

YONG SHENG SHIPYARD is a leading concrete mixing plant manufacturer and supplier, based in China. We also provide dry ore magnetic separator, filling machine, gold panning ship, non negative water supply equipment, etc. Due to their stable performance and reasonable prices, our products are extensively used in many countries, including Russia, Iran, North Korea, Iraq, Vietnam, Thailand, Malaysia, Singapore, and more.
If you are in need of our construction machinery, please feel free to contact us.
