Pipe Float

Pipe Float

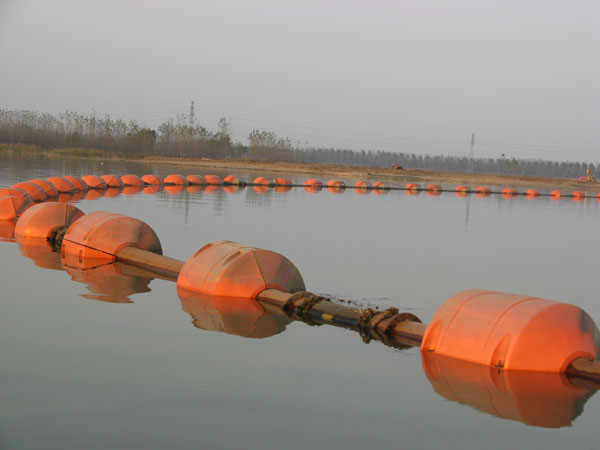

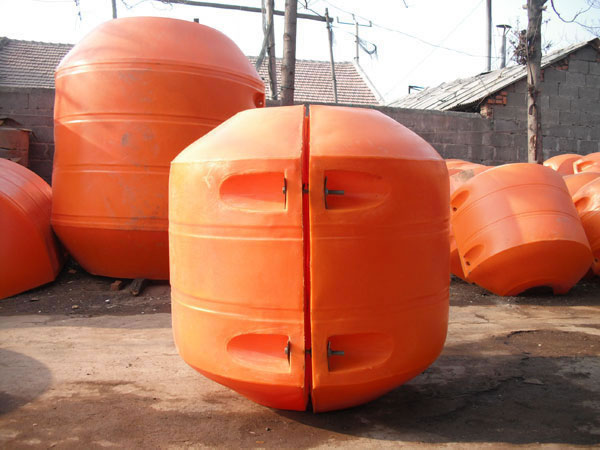

This pipe float, with lowest price but highest price performance ratio, is ideally applicable for discharge or suction pipeline use. Its outer housing is made from middle density polyethylene which can bear high pressure and has excellent toughness, which enables pipe float to work in sea or in lake. And vinyl cover is stuffed with high-strength and high floatation foam materials that are made of polyurethane. Coming with light weight, compact and reasonable structure, our product is simple to install and handle. In addition, this pipe float offers good abrasion resistance, excellent corrosion resistance and outstanding climate resistance to adapt to the extreme climate such as stormy waves. This product has a long service life which is 3 times longer than steel float.

Specification of Pipe Float
Inner Diameter of Steel Pipe ㎜ Thickness of Steel Pipe ㎜ Inner Diameter of Float ㎜ Outer Diameter of Float ㎜ Length of Float ㎜ Thickness of Plastic Materials ㎜ Net Buoyance ㎏ Remarks
350 6 375 1000 1000 6.5 1100 Each Group/4 Pieces
414 8 430 1200 1200 6.5 2200 Each Group/4 Pieces
450 8 480 1300 1300 7 2300 Each Group/4 Pieces
500 8 530 1300 1500 7 2600 Each Group/4 Pieces
550 10 580 1400 1600 8.5 3200 Each Group/4 Pieces
600 10 630 1450 1700 9 3800 Each Group/4 Pieces
650 10 680 1550 1800 9 4020 Each Group/4 Pieces
700 12 730 1530 1940 10 4300 Each Group/4 Pieces
750 12 780 1700 1900 10 5400 Each Group/4 Pieces
800 15 830 1800 2000 12 6100 Each Group/4 Pieces
850 15 880 2000 2500 14 9200 Each Group/4 Pieces
900 15 930 2100 2500 14 11000 Each Group/4 Pieces
900 18 940 2100 2500 14 12000 Each Group/4 Pieces
